Description

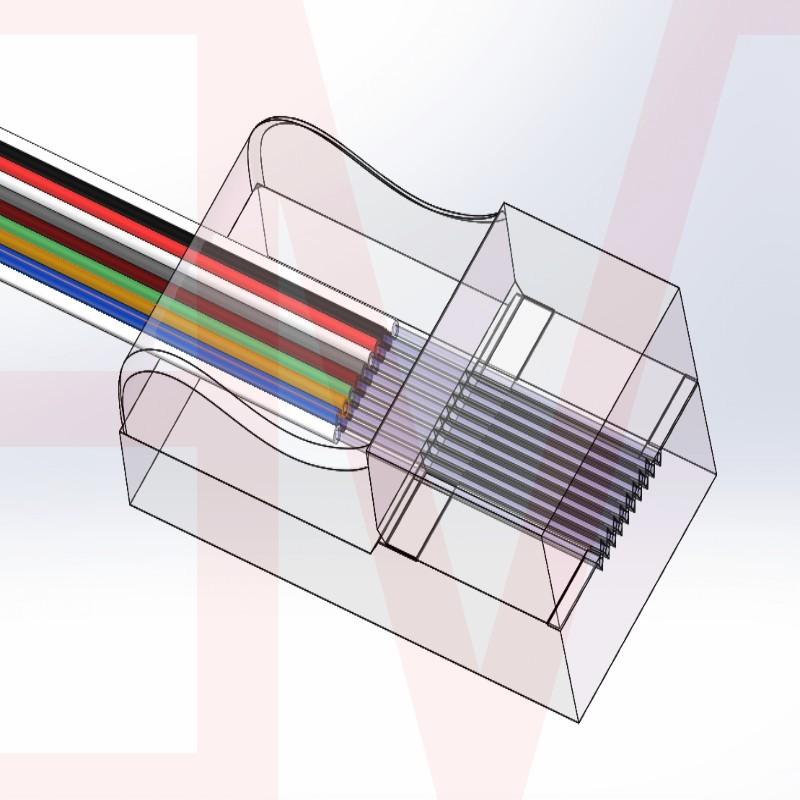

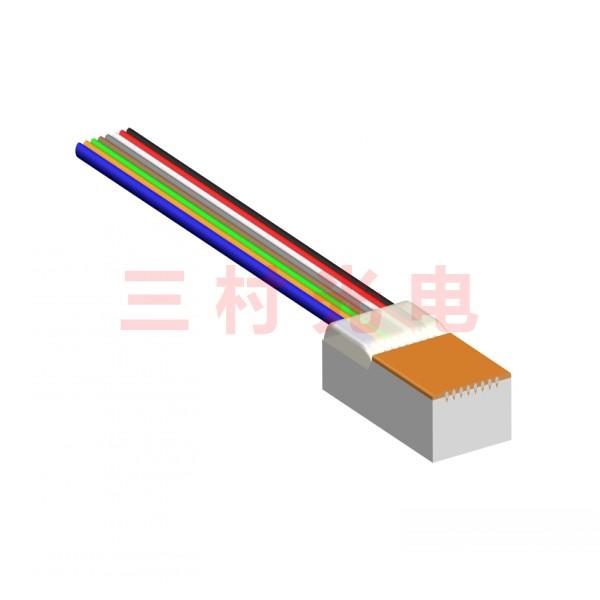

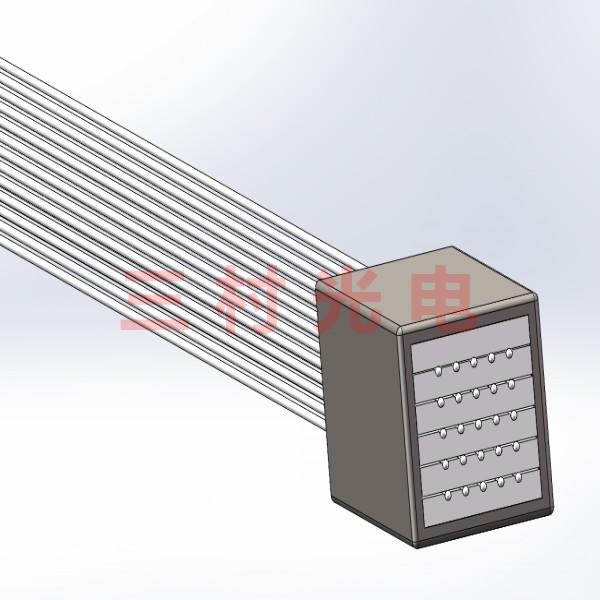

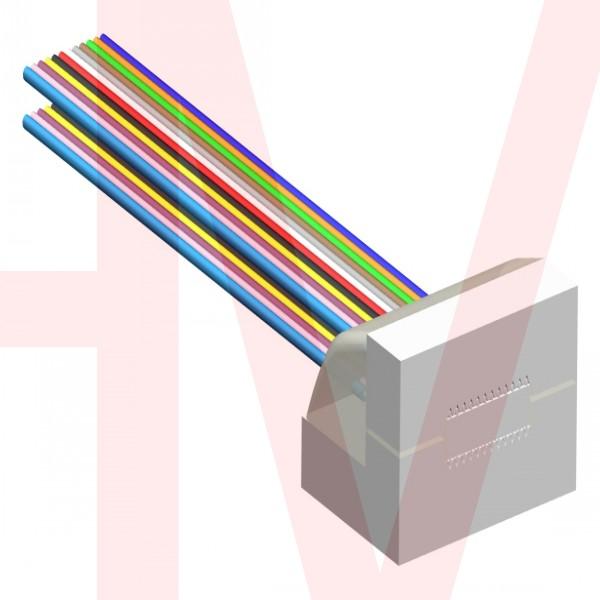

| With the advent of 5G, the demand for high-speed, high-density fiber transmission is becoming more and more urgent. It will become inevitable to expand one-dimensional fiber array into 2D fiber array (2D Fiber Array, fiber surface array, 2D fiber array).

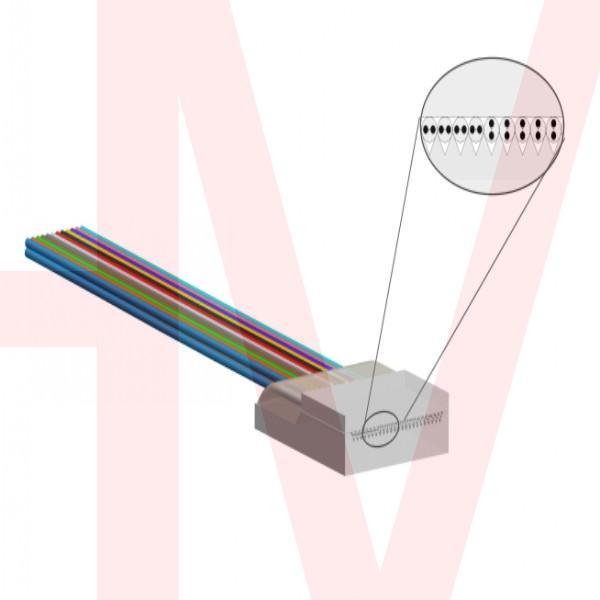

The 2D fiber array is coupled with the laser, and the multi-channel laser can be arranged inten-sively and miniaturized through the 2D fiber array to realize laser face array transmission.The fiber optic array is coupled to the detector to achieve the requirement of replacing expensive area array detectors or splicing into large area array detectors with small array detectors. This 2D fiber array allows thousands of laser channels to position precisely in the X direction and Y direction simultaneously without any crosstalk. Array coupling, switching from 1D to 2D, and signal transmitting and receiving can be easily achieved. Application: Optical coupling, data transmission, detecting scanning
Description

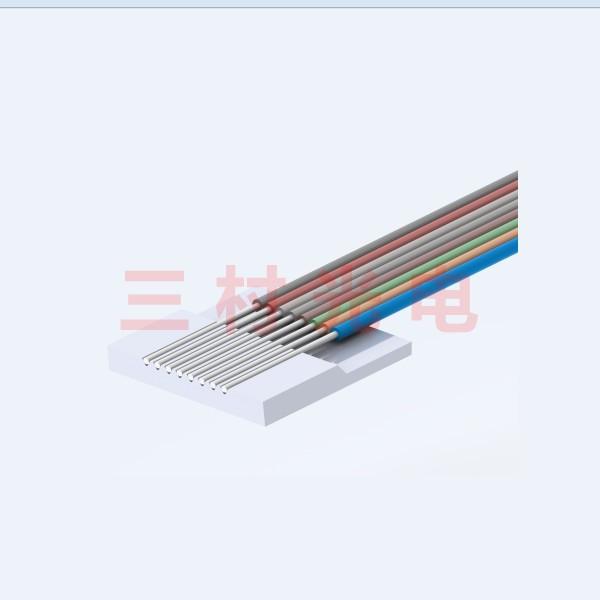

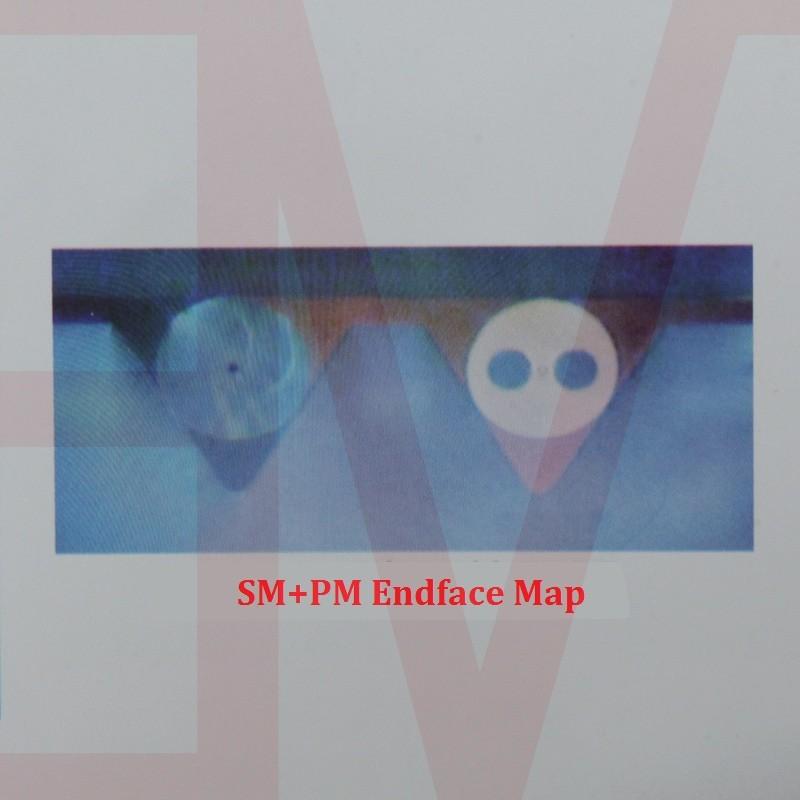

With more than 18 years experiences of designing and developing optical fiber solutions,and first-class fabricating workmanship from Japan,3V TECHNOLOGY is a professional world-service manufacturer,who can support customized requirements. We specialize in: Standard single-mode SM fiber array Custom Multi-mode MM fiber array Polarization Maintaining PM fiber array Custom SM+MM mixed fiber array Custom PM+SM mixed fiber array 42.5°angle polished fiber array 45°angle polished fiber array Custom lidless fiber array Custom Miniature fiber array MFD conversion fiber array lensed fiber array fiber-protruding fiber array, hermetically sealed fiber array 2-dimensional（2D） fiber array Custom Lensed Array and even other customized fiber array with special pitch,special fiber,special channel. Features: 1.Excellent fiber core position accuracy

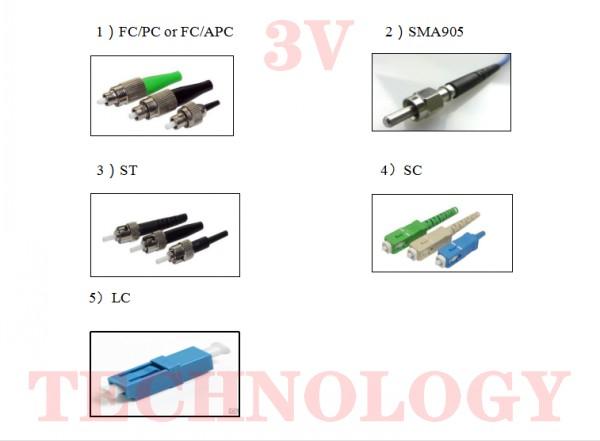

Custom Parameters： Material(v–groove): Quatz,Borosilicate,Silicon or customize Channel Numbers: 1CH,2CH,4CH,6CH,8CH,12CH,16CH,24CH,32CH,48CH,64CH,or customize Core Spacing: 127um,250nm or customize(tolerence±0.5um) Endface Angel Polished: 0, 8, -8(±0.2) Fiber Type:PM/SM/MM or customize Fiber Length: 0.2m,0.5m,1m,2m,or customize Optional Connectors:LC,FC(UPC or APC),MT,SMA,D80 or customize We can support to produce for customized order based on provided sample/drawing |
