3cores Glass Ferrule for φ125um fiber

-Fused silica material

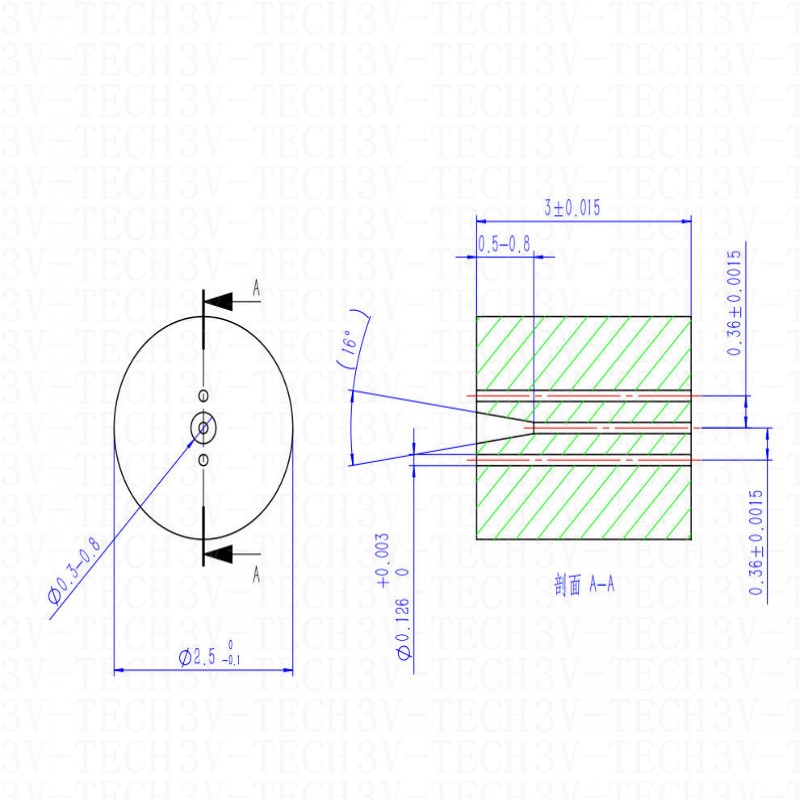

-3cores fiber capillary with 0.360±0.0015mm pitch

-Outer diameter φ2.5-0.1mm

-Inner diameter is 0.126+0.003mm

-Length 3±0.015mm

-for 125um optical fiber

Description

Various Glass material can be processed

Smooth sidewall and roughness of≤1um

Thickness range is 30um~10mm

80um/125um/250um and other diameter can be customized

Min diameter of hole is 30um

High-precision,and regular pitch is 250um or customized

Position and dimensional tolerance≤0.5um

Vertical hole or inclined hole
